Alkali Resistant Reinforcing Mesh

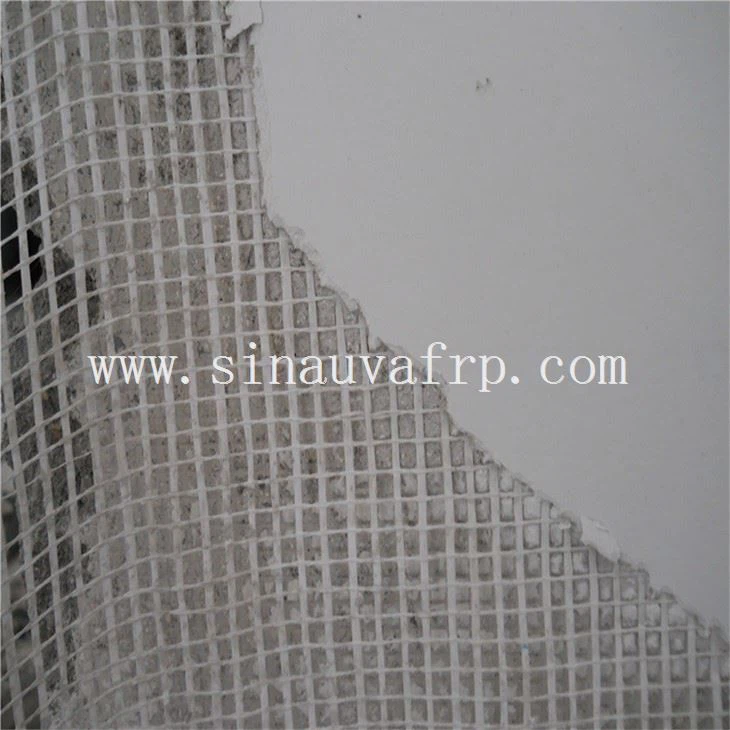

Fiberglass Mesh is woven mesh fabric coated with acrylic acid copolymer liquid on the base of C-glass, E-glass or AR-glass. It has improved properties including water resistant, alkali resistant, flexible, soft, and anti-aging.

Send Inquiry

Features

Introduction

Fiberglass mesh is the basic structure in heat insulation system. It is corrosion resistant and high strength so it can prevent cracks. When being hit by high strength, the mesh spreads the stress equally in different direction to avoid the transfer in the heat insulation system. It's soft and easy to assemble

Features

High strength,

Alkaline resistant,

Deformation resistant,

Anti-aging,

Thermal insulation

Application

Fiberglass Mesh is used in wall reinforcement, outside wall heat insulation, roof, plastic, cement, bitumen, asphalt, marble, building component.

Specification

	Item	Roving Yield		Mesh	Mesh		Weave method	Resin content	Basic weight	Tensile Strength		Glass type
	Unit	yd/lb	g/km	mm	mesh/inch			%	g/sqm	N/50mm
		warp	weft	warp	warp	weft				Warp	Weft
1	FM75	67*2	30	5x5	5±0.5	5±0.5	leno	18±2	75	600	800	E, AR & ECR
2	FM90	67*2	250	5x5	5±0.5	5±0.5	leno	18±2	90	700	900
3	FM110	110*2	250	5x5	5±0.5	5±0.5	leno	18±2	110	1000	1000
4	FM130	134*2	300	5x5	5±0.5	5±0.5	leno	18±2	130	1300	1300
5	FM145	134*2	350	5x5	5±0.5	5±0.5	leno	18±2	145	1300	1500
6	FM160	165*2	350	5x5	5±0.5	5±0.5	leno	18±2	160	1500	1500
7	FM75	67*2	160	4x5	6±0.5	5±0.5	leno	18±2	75	700	800
8	FM90	67*2	230	4x5	6±0.5	5±0.5	leno	18±2	90	900	900
9	FM110	67*2	300	4x5	6±0.5	5±0.5	leno	18±2	110	1000	1000
10	FM130	110*2	270	4x5	6±0.5	5±0.5	leno	18±2	125	1200	1200
11	FM145	134*2	300	4x5	6±0.5	5±0.5	leno	18±2	145	1500	1500
12	FM160	134*2	370	4x5	6±0.5	5±0.5	leno	18±2	160	1500	1600
13	FM80	67*2	80	4x4	6±0.5	6±0.5	leno	18±2	80	700	800
14	FM90	67*2	90	4x4	6±0.5	6±0.5	leno	18±2	90	900	900
15	FM110	67*2	110	4x4	6±0.5	6±0.5	leno	18±2	110	1000	1000
16	FM125	110*2	125	4x4	6±0.5	6±0.5	leno	18±2	125	1200	1200
17	FM145	134*2	145	4x4	6±0.5	6±0.5	leno	18±2	145	1500	1500
18	FM160	134*2	160	4x4	6±0.5	6±0.5	leno	18±2	160	1500	1600
19	FM100	220*2	390	10x10	2.5	2.5	leno	18±2	100	950	950
20	FM110	220*2	480	10x10	2.5	2.5	leno	18±2	110	1000	1000
21	FM120	268*2	470	10x10	2.5	2.5	leno	18±2	120	1200	1300
