Fiberglass Quadraxial Fabric

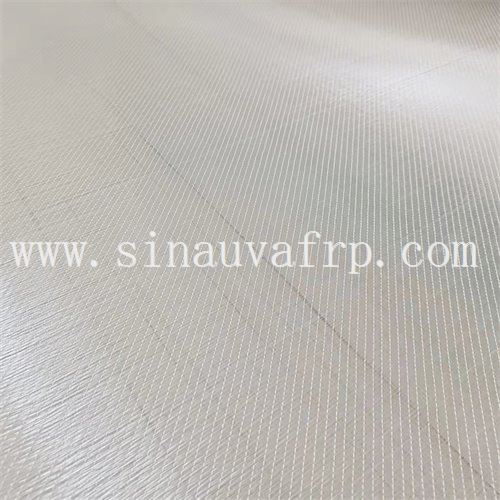

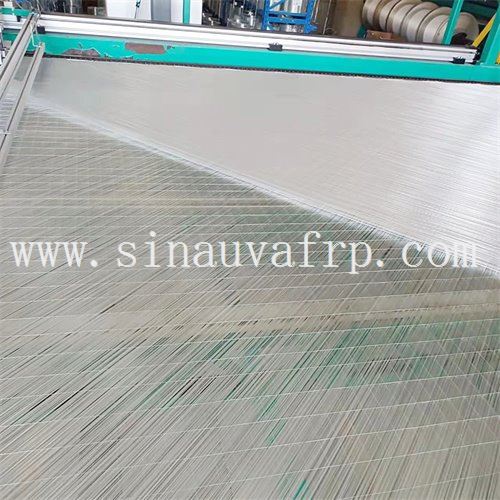

Fiberglass Quad-axial Fabric is produced by four layers of input roving set at 0º /+45º /-45º/90º direction and knitted together. The direction could be slightly adjusted. It could also be stitched with backing mat or polyester veil. The quad is often used on wind energy, marine, transportation and sports equipment, etc.
Features
Introduction:
Fiberglass Quad-axial Fabric is produced by four layers of input roving set at 0º /+45º /-45º/90º direction and knitted together. The direction could be slightly adjusted. It could also be stitched with backing mat or polyester veil. The quad is often used on wind energy, marine, transportation and sports equipment, etc.
Features:
High strength,
High impact response,
Better surface finish,
Excellent laminate properties
Application:
Fiberglass Quad axial Fabric is used in RTM process and vacuum bagging process for various industries such as wind blade, boat, vehicle and sport goods
Specification:
Basic weight: Quad 600, 800, 1200, 1900, Quad Mat 800/275, 1200/300, 1900/300
Roll width: from 6” to 100”
Item | basic weight | 0° layer | +45° layer | -45° layer | 90° layer | polyester | backing mat |
g/m² | g/m² | g/m² | g/m² | g/m² | g/m² | g/m² | |
Quad 600 | 602 | 142 | 150 | 150 | 150 | 10 |
|
Quad 800 | 810 | 200 | 200 | 200 | 200 | 10 |
|
Quad 1000 | 990 | 240 | 250 | 250 | 240 | 10 |
|
Quad 1200 | 1210 | 300 | 300 | 300 | 300 | 10 |
|
Quad 1500 | 1504 | 360 | 367 | 367 | 400 | 10 |
|
Quad 1900 | 1902 | 470 | 476 | 476 | 470 | 10 |
|
QuadM1200/300 | 1510 | 300 | 300 | 300 | 300 | 10 | 300 |
