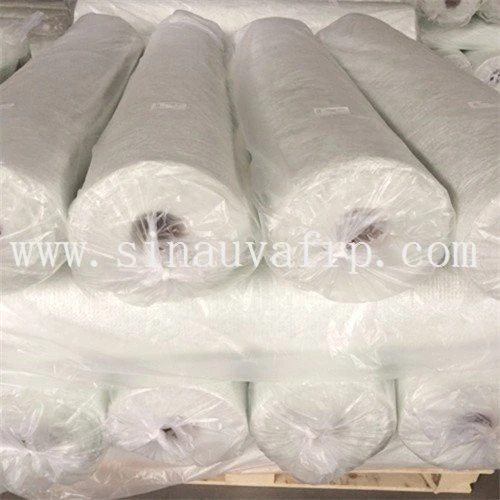

Fiberglass Stitched Combo Mat

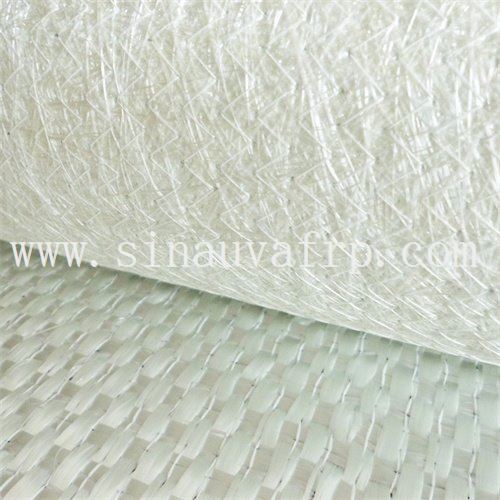

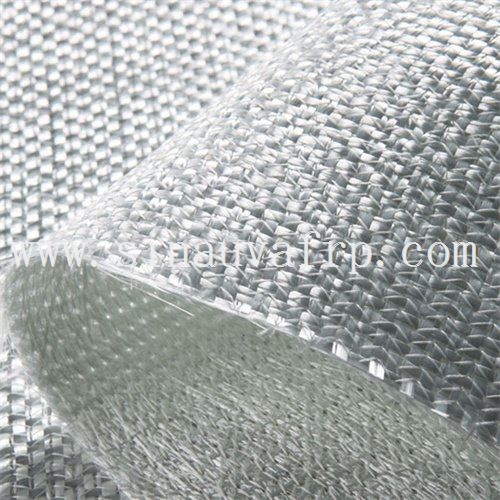

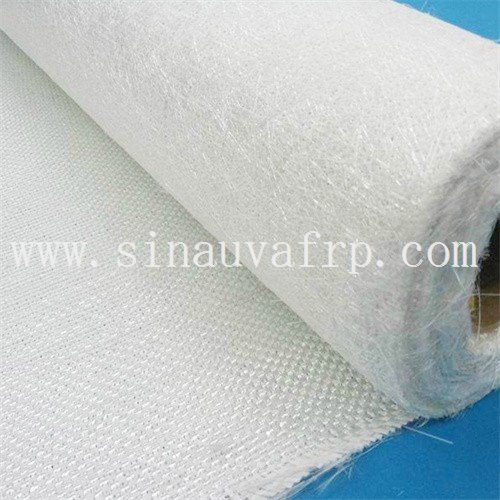

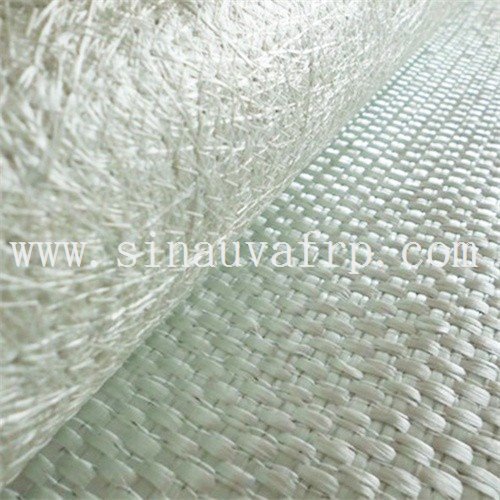

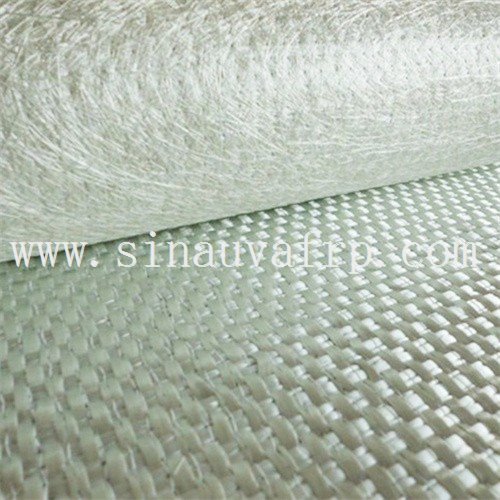

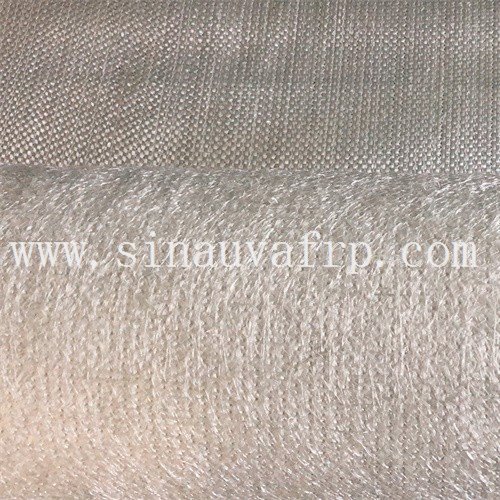

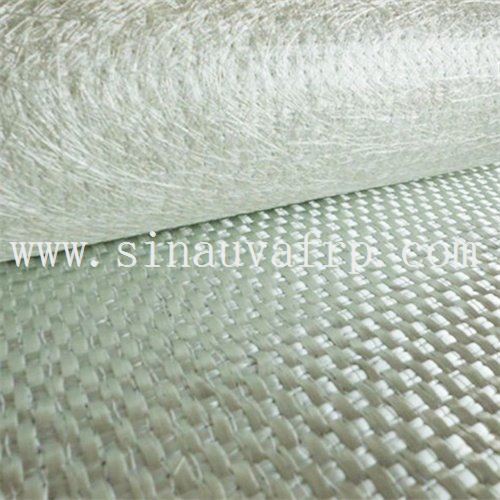

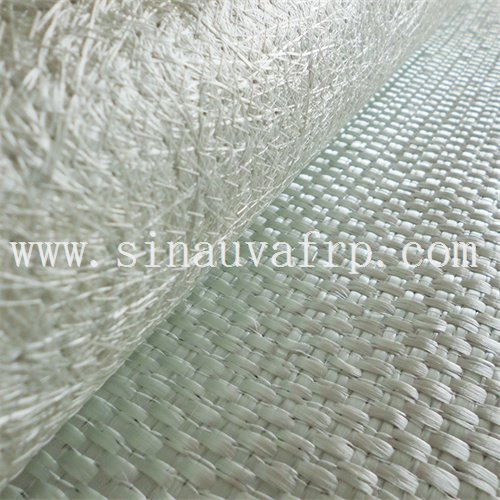

Fiberglass Stitched Combo Mat is a combined mat made of woven roving and one layer of chopped strands dispersed evenly. There is no chemical binder. And it is compatible with various resin system for Pultrusion, Hand layup, and RTM process.

Send Inquiry

Features

Introduction:

Features:

binder free, good compatible with various resin system

consistent gaps between fibers conductive to resin flow and wet out

high strength and light weight , excellent laminate properties

Application:

Fiberglass Stitched Combo Mat is widely used in pultrusion, hand lay up and RTM process.

It’s often used to produce vessels, boats, containers, automotive parts, home furnishings,

laminates, cooling tower and structural shapes.

Specification:

Basic weight: WR/mat: 300/300g, 500/300g, 500/450g, 600/300g, 600/450g, 800/450g,

Width: 38”, 50”, 60”

#	ITEM	Basic weight g/m²	Basic weight oz/yd²	waft density end/10cm	input roving -waft weft	weft density ends/10cm	woven roving	chopped strands
1	combo	300/300	1010	25	600tex	25	300	300
2	combo	500/300	1510	22	1200tex	20	500	300
3	combo	500/450	1515	22	1200tex	20	500	450
4	combo	600/300	1810	25	1200tex	25	600	300
5	combo	600/450	1815	25	1200tex	25	600	450
6	combo	800/275	2408	18	2400tex	16	800	275
7	combo	800/300	2410	18	2400tex	16	800	300
8	combo	800/450	2415	18	2400tex	16	800	450
9	combo	300/500/300	10/1510	22	1200tex	20	500	300
