Milled Carbon Fiber Powder

Milled carbon fiber powder is produced by milling and grinding the carbon fiber into carbon powder in different density. Milled carbon is well defined at different fiber length for various application. Coated or non-coated milled carbon is available for choose.

Features

Introduction:

Milled carbon fiber powder is produced by milling and grinding the carbon fiber into carbon powder in different density. Milled carbon is well defined at different fiber length for various application. Coated or non-coated milled carbon is available for choose.



Features:

Good abrasion property

Good surface appearance

Good dimensional stability,

chemical resistant.



Application:

Milled carbon fiber powder is used to produce electronic chips and parts, carbon plate, conducting floor, anti-static usage such as paint, building insulation, brake parts, filters, thermoplastic resins such as PA, PP, PET, PC, ABS, etc.



Specification:

Standard milled carbon fiber: 50um(300mesh), 75um(200mesh), 150um(100mesh),

It could be either coated or non-coated for improving mechanical properties and surface appearance.

Type

Density

Carbon content

Diameter (um)

fiber Length(mesh)

fiber Length(um)

Tensile moduous

sizing coated

24K

1.75g/cm3

>95%

7

100

150

3.5GPa

Yes / No

24K

1.75g/cm3

>95%

7

200

75

3.5GPa

Yes / No

24K

1.75g/cm3

>95%

7

300

50

3.5GPa

Yes / No

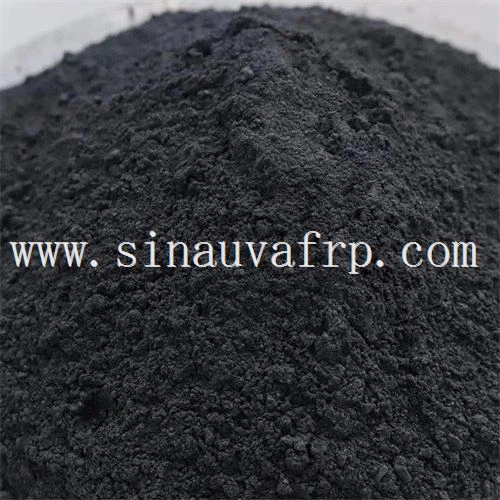

milled carbon 3

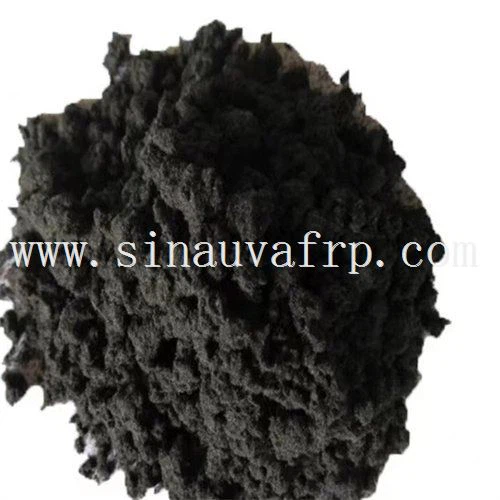

milled carbon2
